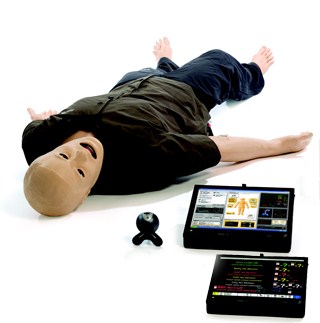

The new SimMan 3G patient simulator is so advanced, it’s actually easy to operate. Whether you’re programming a scenario, using a pre-programmed scenario, or using SimMan 3G on the fly, we’ve made a successful simulation experience as simple as possible.

B U I L T T O L A S T

Laerdal is dedicated to improving patient survival rates through quality training and education—and products that meet user needs. That’s why Laerdal is renowned around the world for products that actually go beyond user needs and, in fact, continue to work well beyond normal expected life. Laerdal products are truly built to last!

H E L P I N G Y O U S U C C E E D

Delivering high quality simulation training requires much more than a simulator— no matter how good it is. Training should take place at the right time and place and requires the most appropriate equipment—including the right instructor training and technical support.

Links

Simulation Quality - Achieving Patient Care (.pdf)

SimMan 3G DFU rev b

SimMan 3G


Quality CPR Feedback Laerdal™s Q-CPR technology measures the quality of CPR providing real time feedback on compression rate, depth, release, and hands-off time as well as generating palpable pulses , blood pressure wave forms and ECG artefacts.	Convulsions Degrees of seizures and convulsions can be created from minor effect through to a full convulsion through the Instructor Mode.	Bleeding and Wounds Wound models can be connected to an internal blood reservoir which will bleed both from arterial and venous vessels. Connected to the simulator™s physiological modelling, SimMan 3G will react appropriately according to treatment.

Wireless Monitor Part of the complete wireless simulation solution, the wireless monitor enables you to observe the patient simulator™s vital signs while moving around freely during training.	Secretions The new eye secretions feature has multiple scenario applications such as responsive reactions to chemical, biological, radiological and nuclear agents.	Drug & Event Recognition The new and advanced Drug Recognition System allows students to administer drugs simultaneously. It registers the amount, speed and type of drug automatically and applies the appropriate physiological responses, saving the instructor time and improving the overall intelligent debrief.

Eye Signs Include pupillary responses to light, blinks at slow, normal and fast rates, winks and open, partially open and closed reactions.	Vascular Access In addition to the standard vascular access in the right arm, the new intraosseous access via the tibia and sternum allows for procedure accuracy	Chest Decompression & Chest Drain Students can now perform a needle Thoracentesis and insert a chest drain bi-laterally.

• Completely wireless and

self-contained

• Internal electrical and pneumatic

power

• Supplemental wired connectivity

and power

• Wirelessly integrates with existing

computer networks

• Swappable, rechargeable batteries

• Approximately 4 hours continuous

operation in wireless mode

• Rugged and reliable for use in

multiple environments

Multiple Airway Skills/Features:

• Controllable open/closed airway;

automatically or manually controlled

• Head tilt/Chin lift

• Jaw thrust w/articulated jaw

• Suctioning (Oral & Nasopharyngeal)

• Bag-mask ventilation

• Orotracheal intubation

• Nasotracheal intubation

• Combitube, LMA,

and other airway placement

• Endotracheal tube intubation

• Retrograde intubation

• Fiberoptic intubation

• Transtracheal jet ventilation

• Needle cricothyrotomy

• Surgical cricothyrotomy

• Variable lung compliance

– 4 settings

• Variable airway resistance

– 4 settings

• Right main stem intubation

• Stomach distention

• Connectivity with third party

respiratory simulations

Airway Complications:

• Detection of proper head position

• Can’t intubate/Can ventilate

• Can’t intubate/Can’t ventilate

• Tongue edema

• Pharyngeal swelling

• Laryngospasm

• Decreased cervical range of motion

• Trismus

Breathing Features:

• Simulated spontaneous breathing

• Bilateral and unilateral chest rise

and fall

• CO2 exhalation

• Normal and abnormal breath sounds

- 5 anterior auscultation sites

- 6 posterior auscultation sites

• Oxygen saturation and waveform

Breathing Complications:

• Cyanosis

• Needle thoracentesis – bi-lateral

• Unilateral & Bilateral chest movement

• Unilateral, Bilateral & lobar

breath sounds

• Chest tube insertion - bilateral

Cardiac Features:

• Extensive ECG library

• Heart sounds – four anterior locations

• ECG rhythm monitoring (4 wire)

• 12 lead ECG display

• Defibrillation and cardioversion

• Pacing

Circulation Features:

• BP measured manually by auscultation

of Korotkoff sounds

• Carotid, femoral, brachial, radial,

dorsalis pedis, popliteal and posterior

tibialis pulses synchronized with ECG

• Pulse strength variable with BP

• Pulse Palpation is detected & logged

Vascular Access:

• IV access (right arm)

• Intraosseous access (tibia and sternum)

• Automatic Drug Recognition System

CPR:

• Compliant with 2005 Guidelines

• CPR compressions generate palpable

pulses, blood pressure wave form, and

ECG artefacts

• Realistic compression depth

and resistance

• Detection of depth, release

and frequency of compressions

• Real time feedback on quality of CPR

Eyes:

• Blinking - slow, normal, fast and winks

• Open, closed and partially open

• Pupillary accommodation:

- synchrony/asynchrony

- normal and sluggish speed

of response

Other Features:

• Seizure/Fascicullation

• Bleeding

- Simulation of bleeding

at multiple sites

- Arterial and venous

- Vital signs automatically respond to

blood loss & therapy

- Works with various wound modules

& moulage kits

• Urine output (variable)

• Foley catheterization

• Secretions

- Eyes, Ears, Nose, Mouth

- Blood, Mucous, CSF, etc.

• Diaphoresis

• Bowel Sounds – four quadrants

• Patient Voice

- Pre-recorded sounds

- Custom sounds

- Instructor can simulate patient’s voice

wirelessly

• Instructor Communication

- Multiple instructors communicate

using integrated voice over IP

Pharmacology:

• Automatic Drug Recognition System

identifies drug & dose

• Extensive drug formulary

• Automatic or programmable

physiological responses

System Features:

• Wireless tablet PC controls

simulator remotely

• Control multiple manikins from

one interface

• Control simulations from anywhereon your network

• Multiple interfaces can control/observe a single simulation

• Instructor Mode

- Precise control “on the fly”

- Design & program custom scenarios

- Create custom events

- Run pre-packaged scenarios

• Auto Mode

- Physiological & pharmacological

models run pre-packaged

simulations

- Unique, simple controls

increase/decrease difficulty & pace

• Simulation controls:

- Fast forward

- Pause

- Rewind

- Save/Restore

• Profile Editor

• Future prediction & patient

outcome display

• Integrated video debriefing

• Data logging

• Instructor comments

• Works with existing SimMan scenarios

Patient Monitor:

• Wireless

• Highly configurable

• Includes:

- ECG (2 traces)

- SpO2

- CO2

- ABP

- CVP

- PAP

- PCWP

- NIBP

- TOF

- Cardiac Output

- Temperature (core & peripheral)

- Additional and programmable

parameters

• X-Ray Display

• 12 Lead ECG Display

• Custom Image Display

• Custom Video Display

Certifications:

• UL, CE, FCC, CSA, HMR
