SimMan® ALS

SimMan ALS provides a mobile, durable solution that will meet the training needs of pre-hospital and in-hospital emergency care providers - from basic assessment to advanced life-support skills.

High quality realistic ALS training

SimMan ALS provides a mobile, durable solution that will meet the training needs of pre-hospital and in-hospital emergency care providers - from basic assessment to advanced life-support skills. From pre-hospital, on-scene assessment and management to definitive care in a hospital, SimMan ALS can fulfill the unique training requirements of emergency healthcare providers.

Enhanced defibrillation training with ShockLink or LiveShock

SimMan ALS with LiveShock

SimMan ALS LiveShock is a combination of a unique SimMan ALS chest skin and an integrated ShockLink unit that enables the use of a live defibrillator with real pads or paddles. No need for separate training pads or paddles.

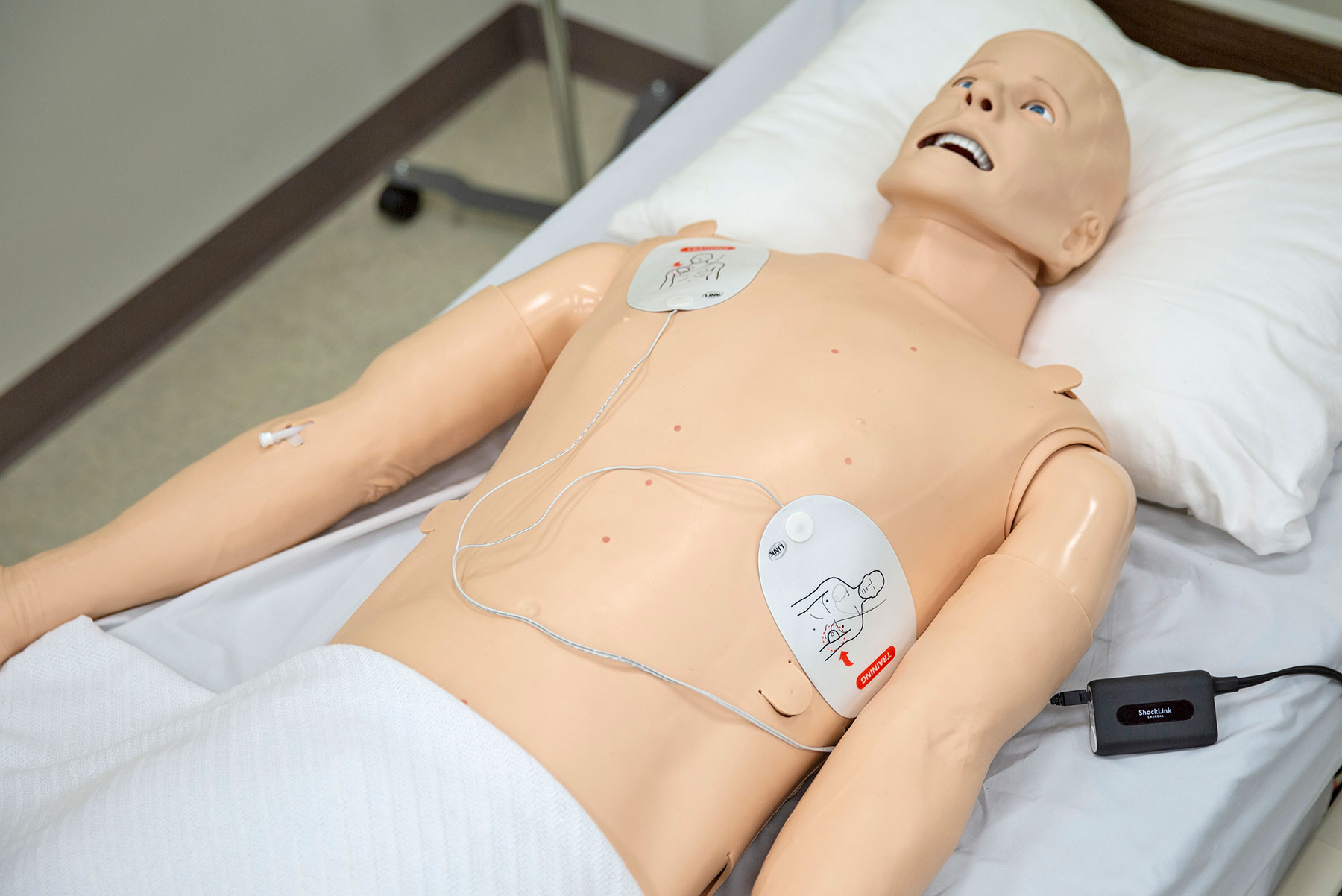

SimMan ALS with ShockLink

Pairing SimMan ALS with ShockLink (bought separately) enables the use of a live defibrillator with training pads.

For both options, training events such as time spent administering CPR, to placing the pads correctly and delivering a shock with minimal interruptions will automatically be captured in the SimPad PLUS or LLEAP data log for assessment and debrief.

Operation and Debriefing Options

Whether using SimPad PLUS or a LLEAP PC to run your simulation, the software is easy and efficient to use for scenario based training. The intuitive operating platforms provide flexible management of patient parameters, integrated data and video capture, as well as simulated patient monitoring capabilities. Choose the operating systems that works best for your training needs.

Take your simulation training further

Together with experts in their field, we have created a range of completely integrated upgrade options that can be combined with different SimMan patient simulators to further enhance your simulation.

Utilize the definitive learning management solution with integrated debriefing and assessment tools.

SimCapture

Use your own clinical patient monitor during simulation training for increased realism.

VitalsBridge

Include diagnostic ultrasound featuring real ultrasound cases with pathological findings into full-scale simulations.

Laerdal-SonoSim Ultrasound Solution

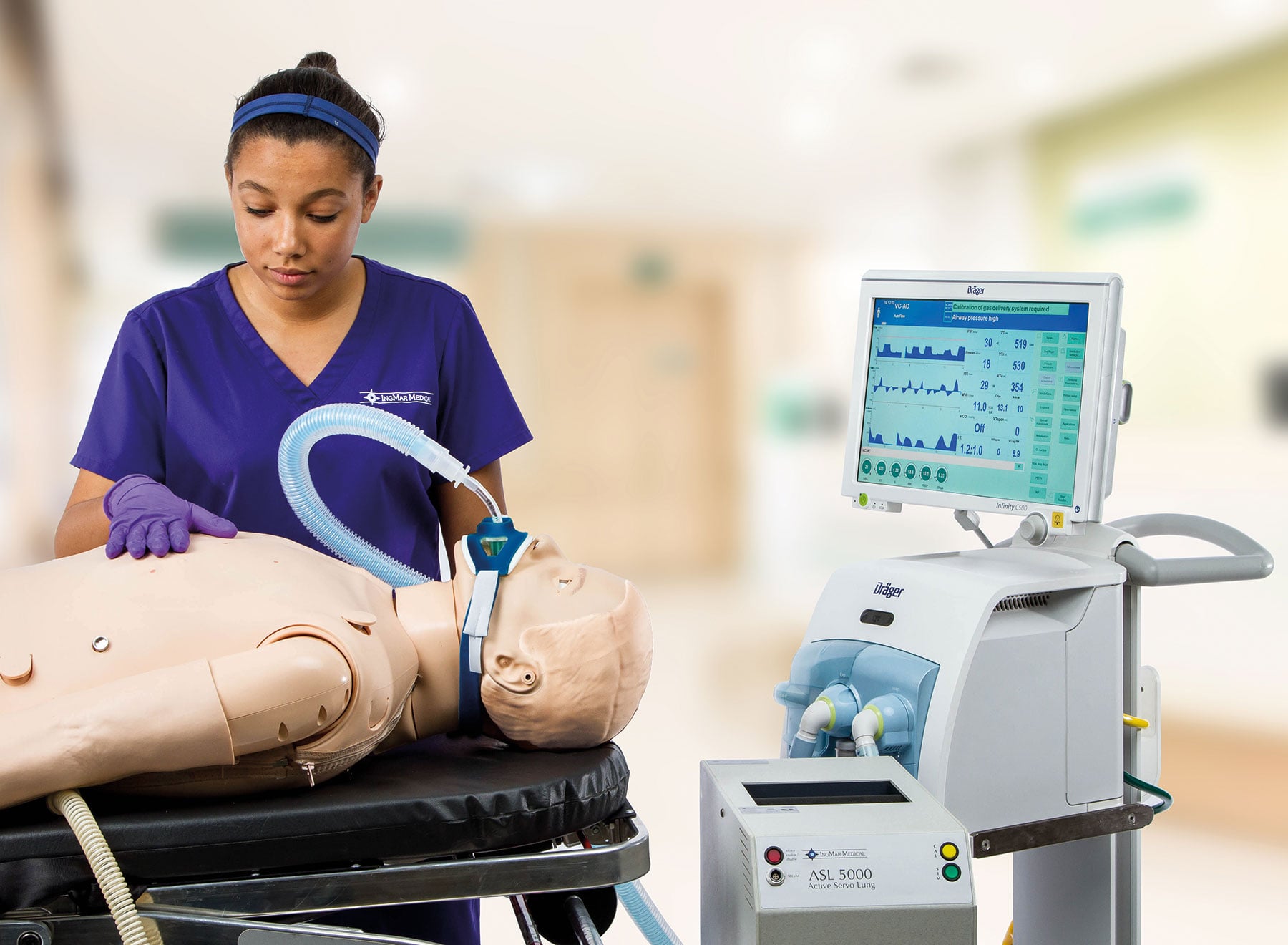

Conduct training with a spontaneously breathing patient supported on a ventilator.

ASL 5000 Lung Solution

Optimizing Your Investment

Always stay operational and on top of the latest simulation knowledge through support of the extensive Laerdal technical and educational service portfolio.

A commitment to helping save lives

At Laerdal, we are committed to helping save lives. That is why simulation is a crucial component of our healthcare education portfolio. Our flagship SimMan Simulators build upon decades of experience in the field of medical simulation.

Laerdal is dedicated to helping you meet your educational goals

From simulators and scenarios to installation and training,  our products and services are designed to help you achieve the optimal training environment.

SimMan® ALS provides a mobile, durable solution that will meet the training needs of pre-hospital and in-hospital emergency care providers - from basic assessment to advanced life-support skills.

Specifications

Anterior and posterior lung sounds

CPR measurement capture and review

Cyanosis linked to vital signs

Pneumothorax with unilateral chest movement

Prepared for ultrasound diagnostic and enhanced defibrillation training

Vascular access - IV and IO



Completely wireless and self-contained

  • Internal electrical and pneumatic power
  • Supplemental wired connectivity and power
  • Wirelessly integrates with existing computer networks
  • Possibility to attach an additional battery on the side to extend the use
  • Rugged and reliable for use in multiple environments



Multiple Airway Skills/Features:

  • Controllable open/closed airway; automatically or manually controlled
  • Head tilt/Chin lift
  • Jaw thrust w/articulated jaw
  • Suctioning (Oral & Nasopharyngeal)
  • Bag-mask ventilation
  • Orotracheal intubation
  • Nasotracheal intubation
  • Combitube, LMA, I-gel and other airway placement
  • Endotracheal tube intubation
  • Retrograde intubation
  • Fiberoptic intubation
  • Transtracheal jet ventilation
  • Needle cricothyrotomy
  • Surgical cricothyrotomy
  • Airway resistance - 3 settings (On/Off/Half)
  • Right main stem intubation
  • Stomach distention



Airway Complications:

  • Tongue fallback
  • Tongue edema



Breathing Features:

  • Simulated spontaneous breathing
  • Bilateral and unilateral chest rise and fall
  • Normal and abnormal breath sounds
  • Lung auscultation sites: posterior and anterior sites
  • Oxygen saturation and waveform



Breathing Complications:

  • Cyanosis
  • Needle thoracentesis – bi-lateral
  • Unilateral & Bilateral chest movement
  • Chest tube insertion – bilateral



Cardiac Features:

  • Extensive ECG library
  • Heart sounds
  • ECG rhythm monitoring (4 wire)
  • 12 lead ECG display
  • Defibrillation and cardioversion using training pads – ShockLink™ (SimMan ALS w/ ShockLink)
  • Defibrillation and cardioversion using live defibrillation pads or paddles (SimMan ALS LiveShock)
  • Pacing





Circulation Features:

  • BP measured manually by auscultation of Korotkoff sounds
  • Carotid, femoral, radial pulses synchronized with ECG
  • Pulse strength variable with BP
  • Pulse Palpation is detected & logged



Vascular Access:

  • IV access (right arm)
  • Intraosseous access (tibia)



CPR:

  • QCPR feedback and scoring compliant with 2010-2015 Guidelines
  • CPR compressions generate palpable pulses, blood pressure wave form and ECG artifacts
  • Realistic compression depth and resistance
  • Automatic detection of depth, release and frequency of compressions as well as hand placement



Eyes:

  • Manually set to: Open, closed and partially open
  • Set of interchangeable pupils



Other Features:

  • Fully articulating pelvis
  • Leg rotation in all natural directions
  • Foley catheterization without urine output
  • Pre-prepared for use of the SonoSim Ultrasound solution
  • Patient Voice
    • Pre-recorded sounds
    • Custom sounds
    • Instructor can simulate patient’s voice wirelessly



System Features:

  • Wireless tablet PC controls simulator remotely or SimPad Plus system
  • Control simulations from anywhere on your network
  • Manual Mode
    • Precise control “on the fly”
  • Automatic Mode
    • Run pre-packaged scenarios
    • Unique, simple controls increase/decrease difficulty & pace
  • Integrated video debriefing
  • Data logging
  • Instructor comments
  • Scenarios available on SimStore



Patient Monitor:

  • Wireless
  • Highly configurable
  • Includes (depending on the operating system):
    • ECG (2 traces)
    • SpO2
    • CO2
    • ABP
    • CVP
    • ICP
    • Anesthetic Agent
    • PH
    • PTC
    • PAP
    • PCWP
    • NIBP
    • TOF
    • Cardiac Output>
    • Temperature (core & peripheral)
    • Additional and programmable



Parameters:

  • 12 Lead ECG Display



LLEAP

  • X-Ray Display
  • Custom Image Display
  • Custom Video Display



Certifications:

  • UL, CE, FCC, CSA, HMR



SimMan ALS includes:

  • SimMan ALS Manikin
  • 2 Soft Sided Transportation Cases
  • Specially Designed Clothing
  • 1 Year Manufacturer’s Warranty



Accessories:

  • Operating system:
  • PC or SimPad Plus
  • Simulated Patient Monitor & Software
    (Large screen, Panel PC w/power cord)
  • SimView or SimView Mobile
  • Rugged PC
  • Scenarios and scenario packages are available on SimStore.



Service Packages*:

  • One or 2 Day Introductory Training Course
  • Advanced Scenario Programming Course
  • Custom One Day Training Package
  • Custom Scenario Development Package
  • On Site Installation
  • Extended Warranty
  • Preventative Maintenance
  • Loaner Program

* services available may differ between countries
